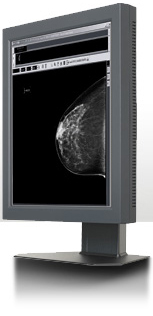

5 MP Mono DisplayMDM2010-5NC |
Technology | Specification |
|
 |
||
| Model Name | MDM2010-5NC |
| LCD Type | TFT 20.1 inch, 256 grayscale |
| Native Resolution | 2560*2048 / 2048*2560 |
| Pixel Pitch | 0.156(H)*0.156(V)mm |
| Active Screen Area | 399(H)*319(V)mm |
| Visual Characteristics | |
| Contrast | 600:1(Typ.) |
| Luminance(Typical) | 400cd/㎡ calibrated, 850cd/㎡ max |
| Viewing Angle(H/V) | 85/85(H) 85/85(V) |
| Grayscale Depth Support | 8-bit / 10-bit / 11.5-bit LUT |
| Backlight Lamp Life | 50K hours |
| Connectivity | |
| Plug & Play | Support VESA DDC2B and DDC/CI; PC2001compliant |
| Input Signal | DVI-I |
| Sync Input | Separate sync(HSYNC/VSYNC); composite sync, Sync on Green (activated through on-screen display) |
| USB 2.0 | USB hub with 1up and 2 down stream Port. |
| ALS (Auto Luminance Stabilizer) |
Yes |
| Power | |
| Power Supply | Auto-ranging, 90 to 265 VAC; internal power supply |
| Input Power | 100~240 VAC, 50~60Hz |
| Environmental | |
| Operating Temperature | 0℃ to +40℃ (32℉ to 104℉) |
| Within Specification | +15℃ to +35℃(59℉ to 95℉) |
| Mount | VESA 100 mm |
| Features | |
| Gamma Preset | Gamma 1.8, 2.0, 2.2 ; DICOM part 14 |
| Option | Graphic Card / PhotoSensor |
| Certification | |
| World Class Certification Safety/EMC |
CE, CB, TUV, UL, FCC, VCCI, MIC, CCC, C-TICK BSMI FDA 510K EN60601-1 EN60601-2 RoHS WEEE CSA C22.2 No.601-1 |
