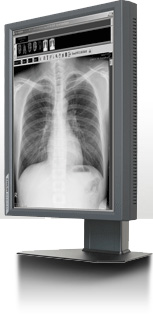

3 MP Mono Display

MDM2130-3NCF

Technology | Specification

It has a 10- bit (1,024 tones) simultaneous grayscale display capability from a palette of 3,061 tones for high- definition medical imaging.
The applications include PACS, CR, CT, MRI and angiography.

FEATURES

Built-in LUT (Look-up Table) to reproduce finest grayscale
General-purpose displays are capable of 256 shades of gray, but due to
unevenness and grayscale discontinuity, they cannot reproduce and display the subtle shading difference required for medical image displays. Our medical image displays render the most appropriate 256 shades (8bit) out of a maximum of 3061shades of gray (11.5bit) using the built-in LUT. This technology realizes much finer and smoother grayscale than possible with general-purpose displays.

DICOM GSDF compliant curves according to the number of simultaneously available gray shades

Calibration function to accurately adjust gamma, color temperature, and luminance
Medical image displays are commonly required to display grayscale according to the Grayscale Standard Display Function (GSDF) defined by DICOM Part 14. The calibration function creates the optimum conditions for a medical imaging display by adjusting luminance levels, color temperature (Color Monitors Only), and grayscale characteristics to achieve DICOM GSDF compliant grayscale output.

How it works
The luminance for each driving level is corrected such that the resulting curve matches the DICOM GSDF achieving smooth grayscale output.The adjusted driving levels are then stored in the monitors drive level LUT (Look-up Table) so displayed images are rendered according to the calibrated drive levels.

Graph is for explanatory purpose only.

A Pairing Display Mode

We offer a display pairing service to optimize your viewing of multiply displays.
This service can be provided before shipping.
